Pressure Booster (2:1 Amplification)

Provides a constant, reliable supply of air pressure to critical points of use

Enables air equipment to operate at pressure levels specified by equipment manufacturers

Enables the reduction of general plant air pressure when used in conjuntion with the Intermediate Control

Eliminates down time and production loss caused by low or fluctuating plant air pressure

Requires no external lubricators which mean unit will not fail due to low lubricant level

• Adjustable pressure stall-point up to 200 PSIG
• Air regulator is built in to allow setting of desired pressure
• Includes air inlet filter, inlet pressure gauges and discharge pressure gauges
• Consumes no air upon reaching and holding the set level pressure
• Full pressure pilot control assures restart within 1% of set pressure
• Maintain set pressure even with small point of use leakage
• In-line installation requires no electric hookup
• Requires no inlet air valve, air regulator or air lubricator
• Units are portable
• Multiple valves can be staged

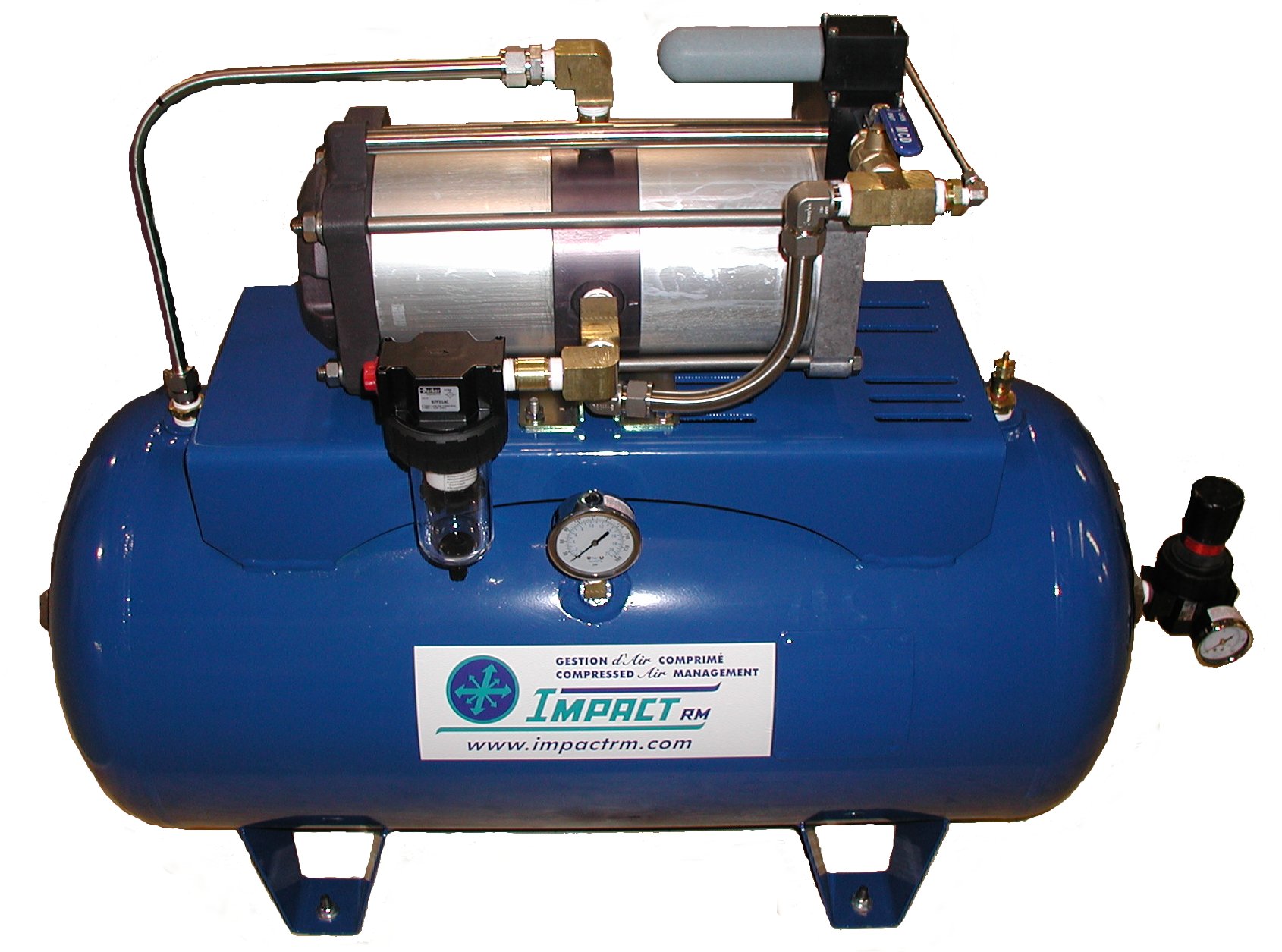

• Package includes mounted receiver with discharge regulator, receiver pressure gauge, relief valve and manual drain valve

Model	Nominal discharge Flow	Connection size	Dimensions LxWxH	Approx. Weight
IMP 44-01	6 SCFM	3/8"	13" x 8.5" 13"	20 LBS
IMP 44-04	6 SCFM	3/8"	17" x 10" 15"	45 LBS
IMP 44-10	6 SCFM	3/8"	23" x 12" 20"	70 LBS
IMP 54-04	15 SCFM	1/2"	17" x 10" x 20"	60 LBS
IMP 64-04	35 SCFM	1/2"	17" x 10" x 22.5"	60 LBS
IMP 64-10	35 SCFM	1/2"	17" x 12" x 23"	100 LBS
IMP 64-20	35 SCFM	1/2"	33" x 16" x 29.5"	130 LBS
IMP 64-30	35 SCFM	1/2"	38" x 18" x 31.5"	160 LBS
IMP 94-10	78 SCFM	3/4"	23" x 12" x 24.5"	85 LBS
IMP 94-20	78 SCFM	3/4"	33" x 16" x 29.5"	140 LBS
IMP 94-30	78 SCFM	3/4"	38" x 18" x 31.5"	180 LBS
IMP 94-60	78 SCFM	3/4"	50" x 22" x 36"	230 LBS

• Maximum rated working pressure is 200 PSIG. Higher pressure units are available
• Air usage will be 1.5 - 2.0 x the actual discharge flow
• Nominal flow is based on the approximate range of 80 - 90 PSIG in and 110 - 120 PSIG out
• Actual flow is subject to specific operating pressures and duty cycle
• Contact Impact RM for estimated flow data and quotation for specific set of conditions

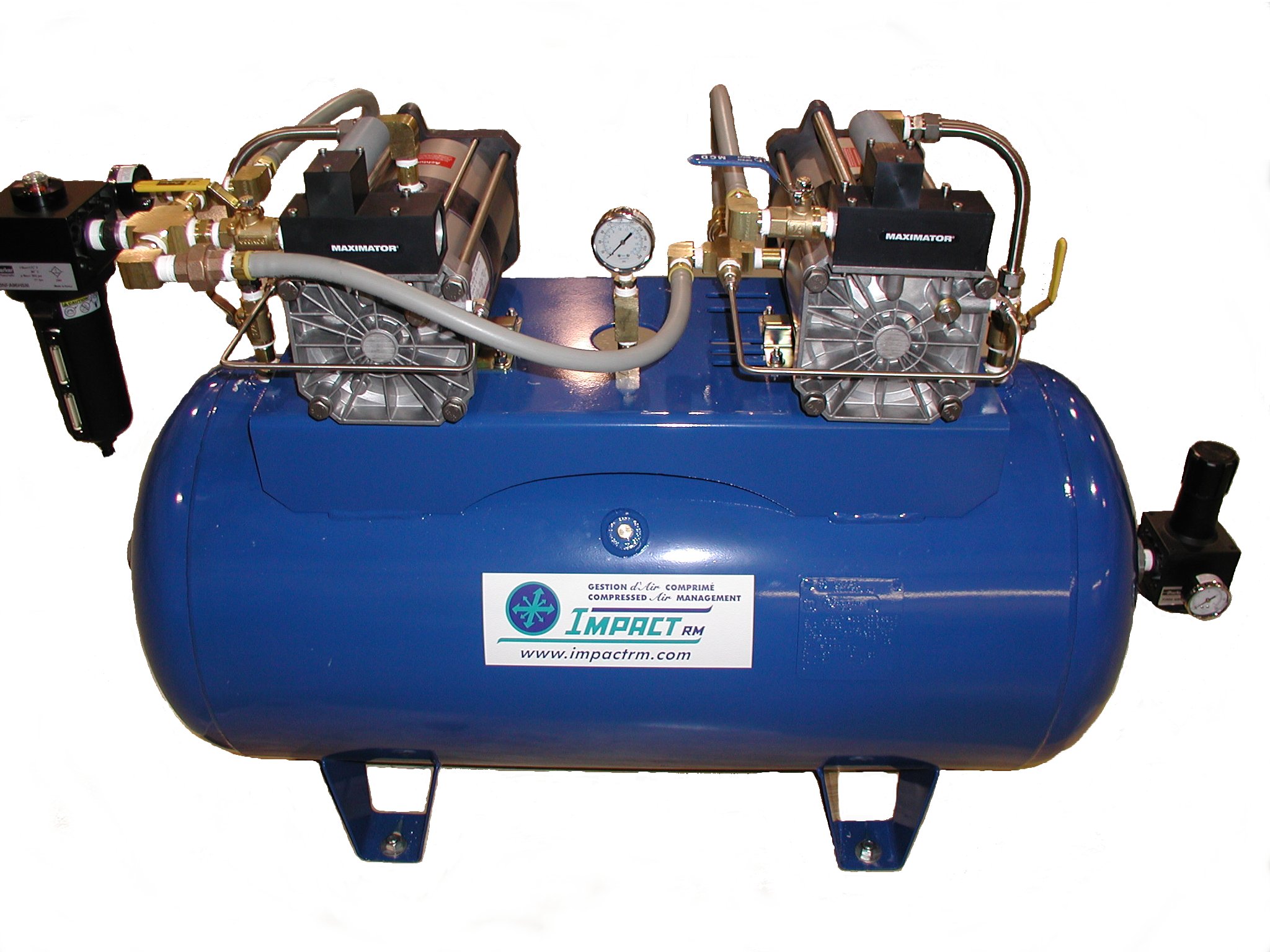

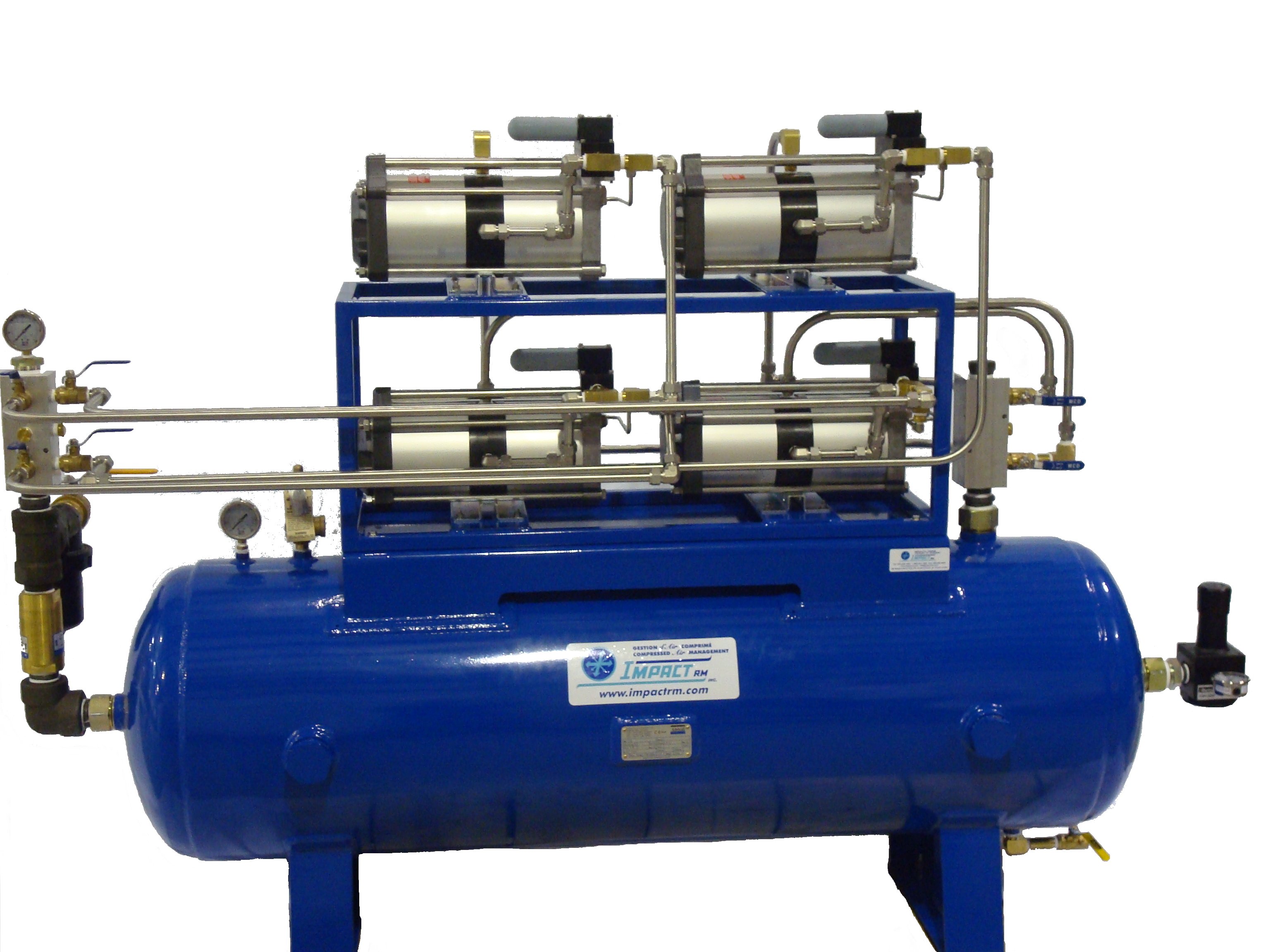

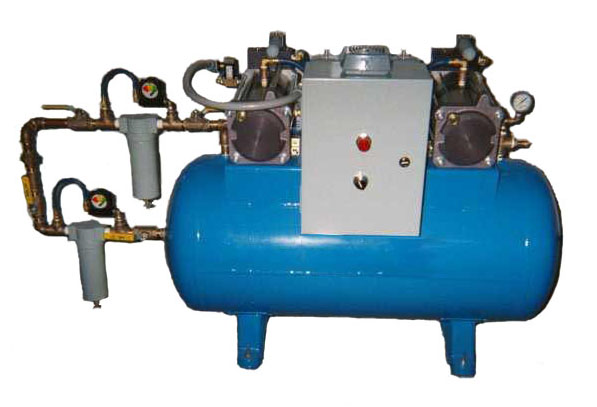

• CPA modules can be duplexed for higher flow applications or for staging pressures

• Receiver volumes of 10, 20, 30 and 60 gallons are available
