SDT 170 S

Product Ref. Code: FS170S

SDT170S

General Description:

The SDT 170S (Standard) is the entry-level point for the 170 platform and features standard airborne ultrasonic detection with an integral sensor. It is primarily used for compressed air leak and vacuum leak detection, verifying the tightness of seals in a car, plane, truck, train, clean rooms, vessels, ship hatch covers, etc…). It is a low cost solution for the detection of electrical problems (arcing, corona, tracking), inspection of steam traps, hydraulic and pneumatic circuits, cavitating pumps, and general mechanical inspections where trending and measured data is not critical.

All measured signals are displayed on a segmented analogue bar graph. The SDT 170 S version is equipped with an internal airborne ultrasonic sensor and can be used in combination with all external ultrasonic sensors (contact probe, magnetic sensor, threaded sensor, flexible sensor, parabolic waveform concentrator, and waterproof airborne sensors.

The SDT 170S can be fully upgraded, over the Internet, to the 170M (Multifunctional) and 170MD (Multifunctional/Datalogger) versions.

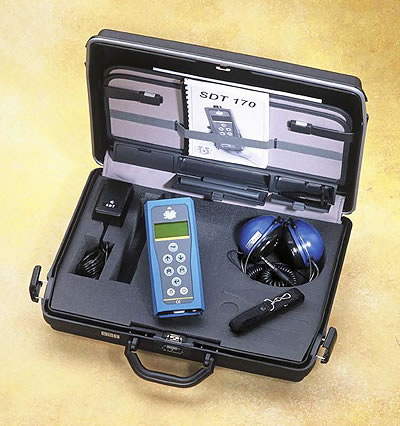

The unit contains:

FUSUIT170

Samsonite briefcase SDT 170 + foam

FU170S

SDT 170 S unit with battery, rubber protection and user manual

FSPRECIND

Precis. indicat. 101/150/170 (Threaded tip, rubber tip, 2 plast. tubes)

FUHEADPH

Headphone 130 dB

FUPS170EU (GB)

Battery loader SDT 170 - 240 EU (GB)

FUSTRAP

Shoulder strap for 170, switchbox or Datalogger

Technical Data:

Function

Multifunction detector

Display

Extended temperature Graphic High contrast LCD with backlighting 100 x 32 pixels

Keyboard

8 function key's

Ultrasonic sensors
  • Internal
  • External

External sensors
  • Sound level (noise level) dBA, RPM, Air mass flow(sccm), Temperature.

Measuring range

-10 dBµV to 120 dBµV

Accuracy

± 0.5 dBµV

Measuring resolution

0.1 dBµV

Signal to noise ratio

-5 dBµV typical

Band width

(-3dB) 2 kHz

Frequency range

0 to 200 kHz depending on the sensor

Battery pack
  • Rechargeable NiMH (Nickel Metal Hydrate).
  • Autonomy of 8 to 10 hours without backlighting.
  • Recharge time: 5 to 6 hours.
  • Nominal Capacity: 1,3 Ah.
  • Life span: 500 to 1000 charge/discharge cycles.
  • Recharge only with appropriate charger.

Auto power down

Auto power down after pre set time

Operating temperature

-10°C to +60°C / 14°F to 140°F

Housing

Extruded aluminum

Weight

Approx. 700 g / 24.69 oz. (with battery and holster included)

Dimensions

203 x 38 x 88 mm / 8 x 1.5 x 3.4 inches (L x H x W)

Holster

Rubber resistant to hydrocarbons (Fluor silicone)


PDFSDT 170.pdf | 8 pages | 338 kb
